The K-Trak-Mag+
Designed for:
〰️
Vans
〰️
Trailers
〰️
High Value Vehicles
〰️
Caravans
〰️
Motorbikes
〰️
Designed for: 〰️ Vans 〰️ Trailers 〰️ High Value Vehicles 〰️ Caravans 〰️ Motorbikes 〰️
K-Trak-Mag+ was designed created to provide you with a sense of security knowing that your high-value possessions are secured and trackable in the unthinkable event of theft. Even with GPS detectors, it is extremely difficult to find due to it’s flexible magnetic attachment mechanism and with daily reporting frequency. When GPS isn't accessible, cell-ID-based location data is used to support GPS tracking, offering you a backup tracking alternative. The device is also connected to our finder network, so if you need assistance getting your item back, a recovery service with a 1-hour national target response time can be deployed to ensure your asset doesn’t go far.
BENEFITS
Insurance-approved Thatcham S7 tracking system
Rechargeable battery which can last up to 5 years on a single charge
Advanced detection and location technology embedded
Low risk of undetected removal due to motion and tamper alerts
No installation costs, simple DIY set up
Easy remote management with Web and App access
Fully rechargeable with automatics low charge alerts
Optional recovery with the target of 1 hour national response time
THE APP
Tracking Modes

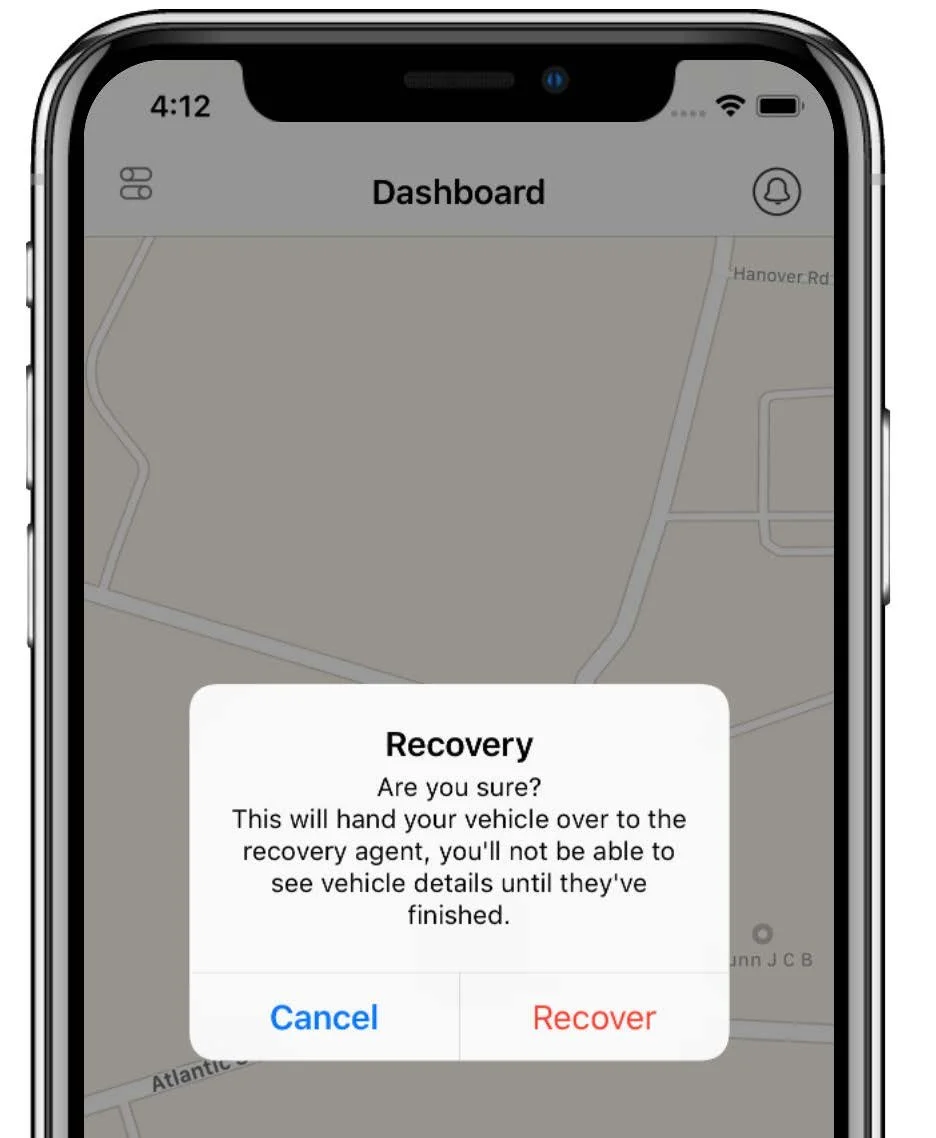

Recovery Mode
The K-Trak-Mag+ App offers 4 flexible tracking options:
(STANDBY / TRANSPORT / MONITOR / THEFT)
This enables you to remotely manage the frequency of location updates, as well as turn on the removal and motions sensors on and off, depending on the vehicles current usage. If the unimaginable happens and your vehicle is stolen, the in-app recovery mode enables you to immediately pass tracking of your vehicle over to our asset recovery team who will assist you in the recovery of your vehicle with a national response time goal of 1 hour.
Specifications
Features
Technical
Sends GPS (Location, speed) information to your application server with configurable report interval (moving or stationary)
Supports circle and polygon geofencing
Can store up to 1000 messages when signal is lost
Optional mode which sets the device to automatically wake up when is senses the asset is moving and power down when it is stationary
When battery level is low, the device will send a “low battery” alarm message
Battery: 7800/600 mAh
Light sensor generates an alert when the device is removed
Device reports cell-ID based location information where GPS is not available
Configuration, setting and firmware can be remotely upgraded
IP65 Waterproof
& Applications
Case Material: PC-ABS
Dimensions: 107mm x 61mm x 32mm
Weight: 343G
Environmental Protection: IP TBD
Operating Temperature: -20 to +60
Storage Temperature: -20 to +60
Approvals: FCC ID: QIPRXS82-W. 2AS5Y - 62T
IC: 7830A - EXS82W, 24995 - 62T
CE (RED)
Electrical Protection: (Charging Connector) IEC 61000-4-2 Level
4
ESD Rating Class 3 and Class C
Under Voltage, Over Voltage and Over
Current protection
Power Source: Lithium Ion Rechargable battery pack 6AHr 3.V
Charging Current: <450mA at 5V
Frequency Bands: GSM 850/900/1800/1900
LTE Cat M1 7000.800/850/900/1800/1900/2100
LoRA 868MHz
Location: GPS/Glonass/BeiDou/Galileo
